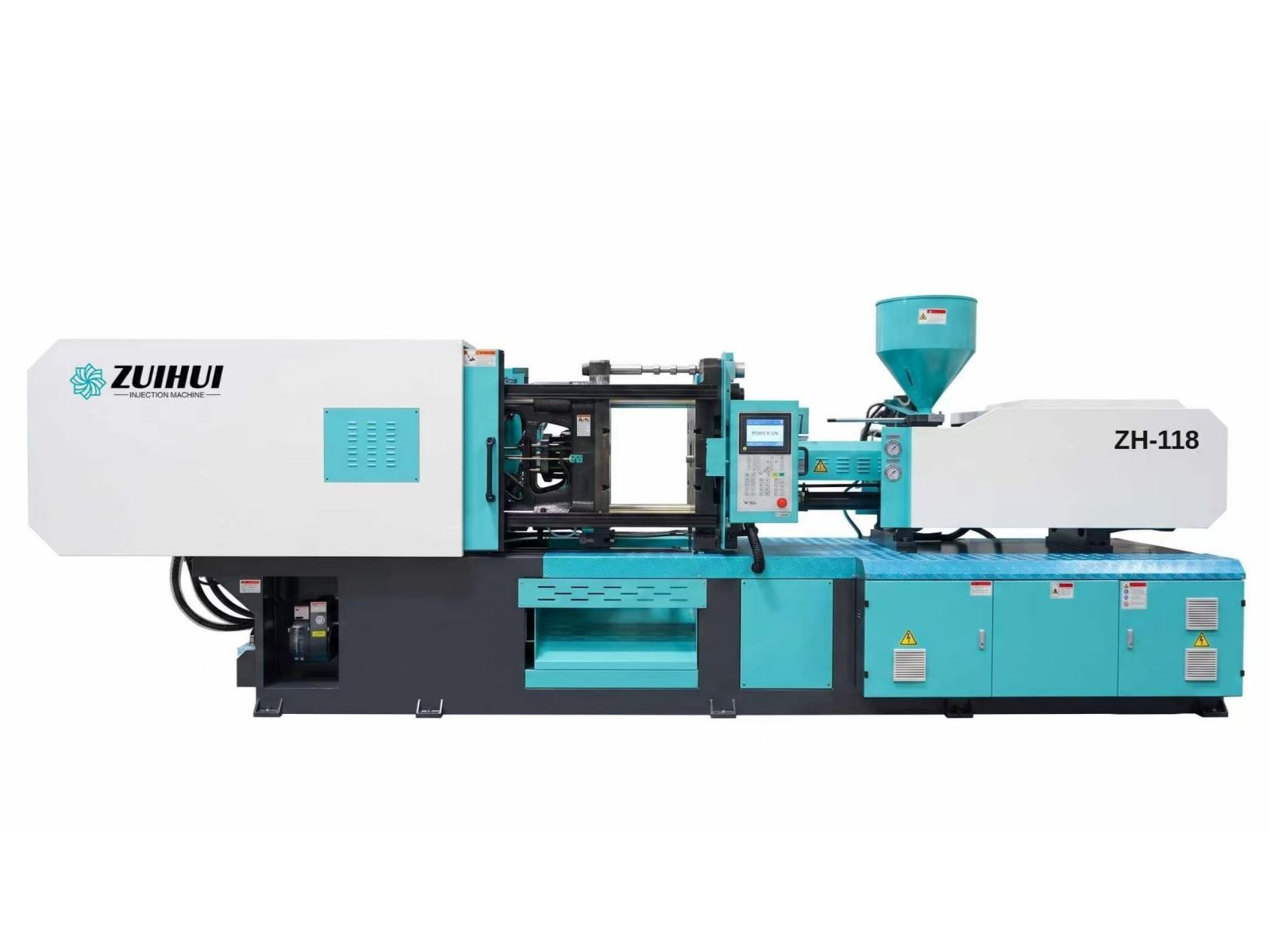

118T Servo Injection Molding Machine ZH-118

Get a Quote Now

Description

Reviews

Product Overview

The ZUIHUI ZH-118 is a premium horizontal servo-driven plastic injection molding machine engineered for high stability, consistent precision and excellent energy efficiency.Equipped with a mature servo drive system and optimized double-toggle clamping mechanism, this 1180kN universal model features a theoretical shot weight of 213g.As a versatile golden-size machine, it strikes an ideal balance between clamping capacity and floor space. Highly adaptable for manufacturing medium & small automotive parts, electronic components, electrical fittings, home appliance accessories and daily plastic necessities.It perfectly balances stable molding performance with low operational noise and reduced power consumption, becoming the preferred choice for diversified precision mass production.

Clamping Force

1180 kN (118T)

Space Between Tie Bars

375 × 375 mm

Max. Shot Weight (PS)

213 g

Pump Motor Power

11 kW

Technical Specifications

Specification	Unit	Screw A	Screw B	Screw C
INJECTION UNIT
Screw Diameter	mm	35	38	42
Screw L/D Ratio	L/D	22	20.2	18.4
Theoretical Shot Volume	cm³	163	192	235
Shot Weight (PS)	g	148	175	213
Injection Rate	g/s	89	105	128.1
Injection Pressure	MPa	219	186	152
Screw Speed	rpm	220
CLAMPING UNIT
Clamping Force	kN	1180 (118Tons)
Mold Opening Stroke	mm	350
Space Between Tie Bars (W × H)	mm	375× 375
Max. Mold Thickness	mm	380
Min. Mold Thickness	mm	150
Ejector Stroke	mm	100
Ejector Force	kN	38
OTHERS
Max. Pump Pressure	MPa	16
Pump Motor Power	kW	11
Electric Heating Power	kW	7.45
Overall Dimensions (L × W × H)	m	4.30× 1.30× 1.80
Oil Tank Volume	L	180
Machine Weight	t	3.4
