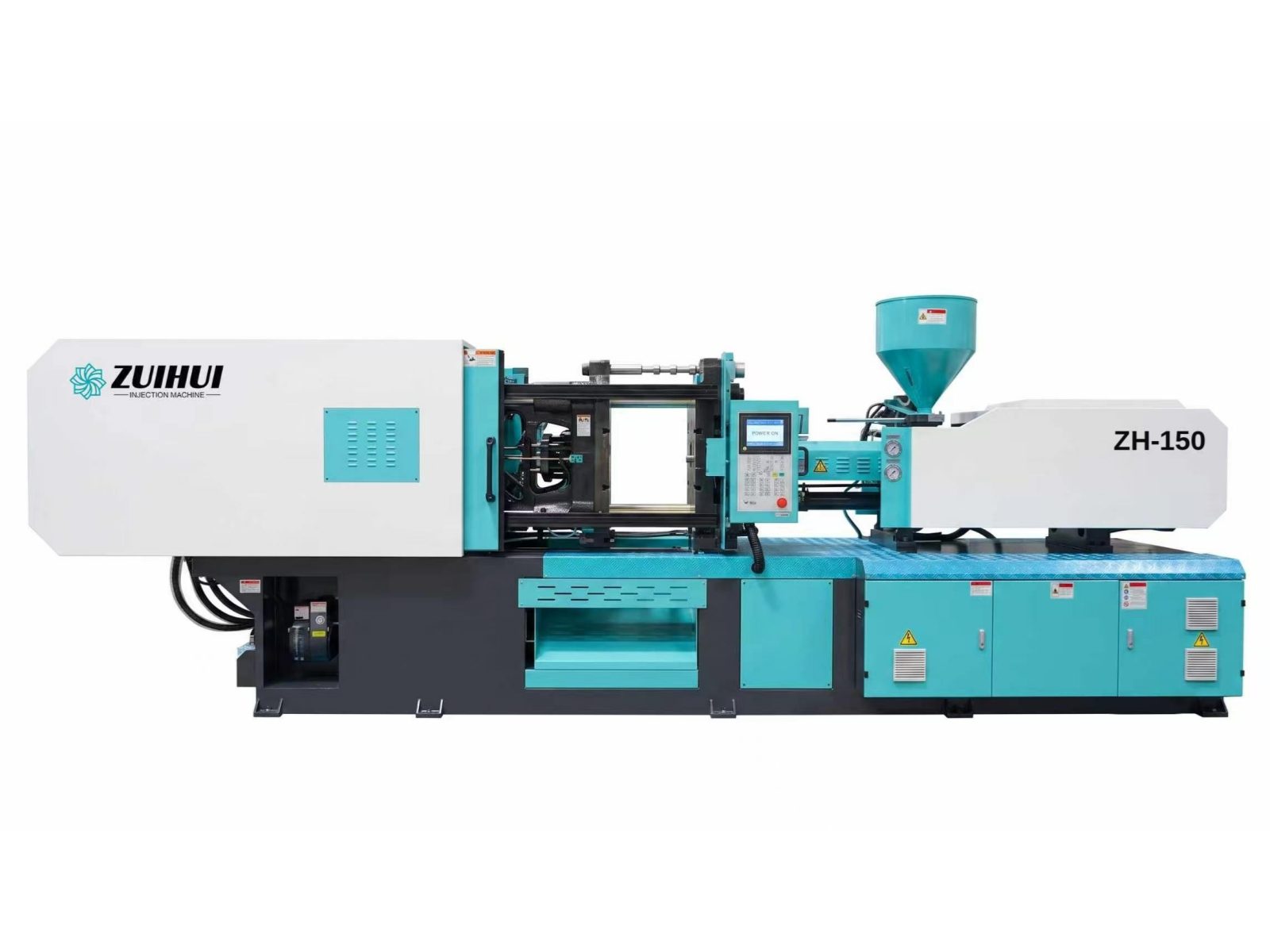

150T Servo Injection Molding Machine ZH-150

Get a Quote Now

Description

Reviews

Product Overview

The ZUIHUI ZH-150 is a premium horizontal servo-driven plastic injection molding machine engineered for high stability, reliable precision, and outstanding energy efficiency. Equipped with a mature world-class servo drive system and optimized double-toggle clamping mechanism, this 1500kN workhorse delivers a theoretical shot weight of 313g. Highly adaptable for manufacturing automotive small parts, electronic components, home appliance fittings and daily necessities. It perfectly balances stable high-speed molding performance with low operational noise and greatly reduced power consumption, ideal for medium-volume precision mass production.

Clamping Force

1500 kN (150T)

Space Between Tie Bars

435 × 405 mm

Max. Shot Weight (PS)

313 g

Pump Motor Power

15 kW

Technical Specifications

Specification	Unit	Screw A	Screw B
INJECTION UNIT
Screw Diameter	mm	45	48
Screw L/D Ratio	L/D	20	19
Theoretical Shot Volume	cm³	295	350
Shot Weight (PS)	g	275	313
Injection Rate	g/s	125	130
Injection Pressure	MPa	177	156
Screw Speed	rpm	200
CLAMPING UNIT
Clamping Force	kN	1500(150 Tons)
Mold Opening Stroke	mm	385
Space Between Tie Bars (W × H)	mm	435X405
Max. Mold Thickness	mm	450
Min. Mold Thickness	mm	170
Ejector Stroke	mm	125
Ejector Force	kN	33
OTHERS
Max. Pump Pressure	MPa	16
Pump Motor Power	kW	15
Electric Heating Power	kW	6.9
Overall Dimensions (L × W × H)	m	4.60× 1.45 × 1.80
Oil Tank Volume	L	250
Machine Weight	t	4.30
